The Sound of Music

I’m sure everyone is sick of hearing about my car projects. So here’s another one! In past posts I have mentioned various stereo upgrade projects (head unit, amps, sub). But the stereo wasn’t complete…until now. I finally replaced my stock speakers (mids & tweeters). Overall, I am extremely happy with the cumulative results.

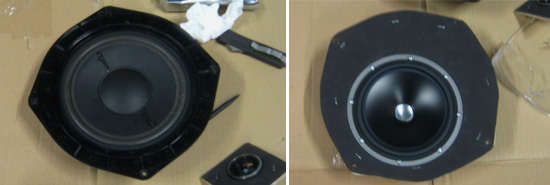

I picked JL Audio ZR-series component speakers (ZR-650CSI for the front and ZR-525CSI for the back) based on reviews I’d read and because I have liked my JL Audio sub so much (the ZR series speakers produce very clear and accurate sounds). The original speakers in the C6 are these monstrous 10″ paper things. Nasty. I had to make adapters to fit the JL Audio 6.5″ set. I used 1/4″ oak ply covered with foam. Same thing for the tweeters.

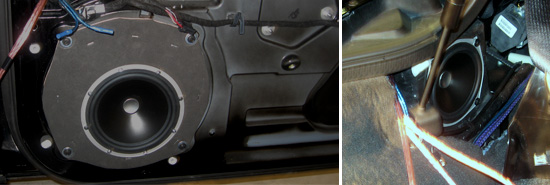

The speaker install was pretty painless. The hardest thing would have been running new speaker wire but Sound Warehouse had done that last year. Getting body panels off can be tricky, but the C6 Vettes are pretty straight forward.

I decided to put the front crossovers in the doors. Instructions will tell you never to  put them inside the door, but there’s a right way to do it.  I mounted them in the side impact foam- they are perfectly safe from water and dirt.  I mounted the rear crossovers behind a carpeted body panel in the trunk section- safe and accessible

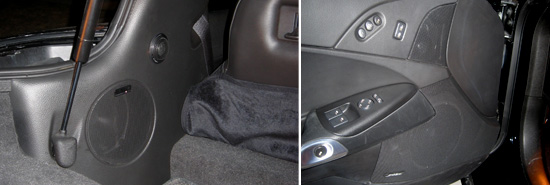

With the panels back on everything looks great. I mounted a component set in the back as well. Jim helped me tweak the setting on the amps and crossovers. We pumped out some Enya and tingled. When your stereo makes you tingle you have a winner.

Below is the total rundown of my project. The labor time listed includes fabricating parts, carpeting, installation & testing/tuning. I’m not going to discuss price, but you’ve got everything you need if you really want to know. The bottom line is that I’m thrilled and I feel like it was worth the time and money I put into it. The stereo is finished. Now it’s time for the engine. Maybe. Probably. Yes, definitely. Getting close…

Pioneer Avic Z1 head unit with the Sirus/XM radio, blue tooth and iPod modules (install by Sound Warehouse).

JL Audio ZR component speakers: 650CSI in front and 52sCSI in back  (custom front speaker plates & install by me, 12 hours).

Kenwood XR-4s amp  for the mids & tweeters and Kenwood XR-1S amp for the sub woofer (custom amp rack by Justin & me and install by me, 8 hours).

JL Audio W6 10″ sub (custom sub box by Justin & me and install by me, 7 hours).

PAC Steering wheel control interface (install by Jim & me, 1 hour)

Wiring for head unit (RCA cables from Lightning Audio), subs, and speakers by Sound Warehouse


Originally Posted March 21, 2010
